Strange Ultra Case and Support Package Lightened 3.812″ Bore Case & Taper/Ball Support With Installation Kit For 9″ or 9 1/2″ 35 Spline Pro Gears

Description

Additional Parts Required
Strange HD 40 spline spool
9″ or 9 1/2″ Pro gear set
35 spline yoke or coupler
Gasket

This Case May Not Fit Your Housing
Please refer to housing clearance diagram

Using 9 1/2″ Gear Set ?
Also check gear diagram

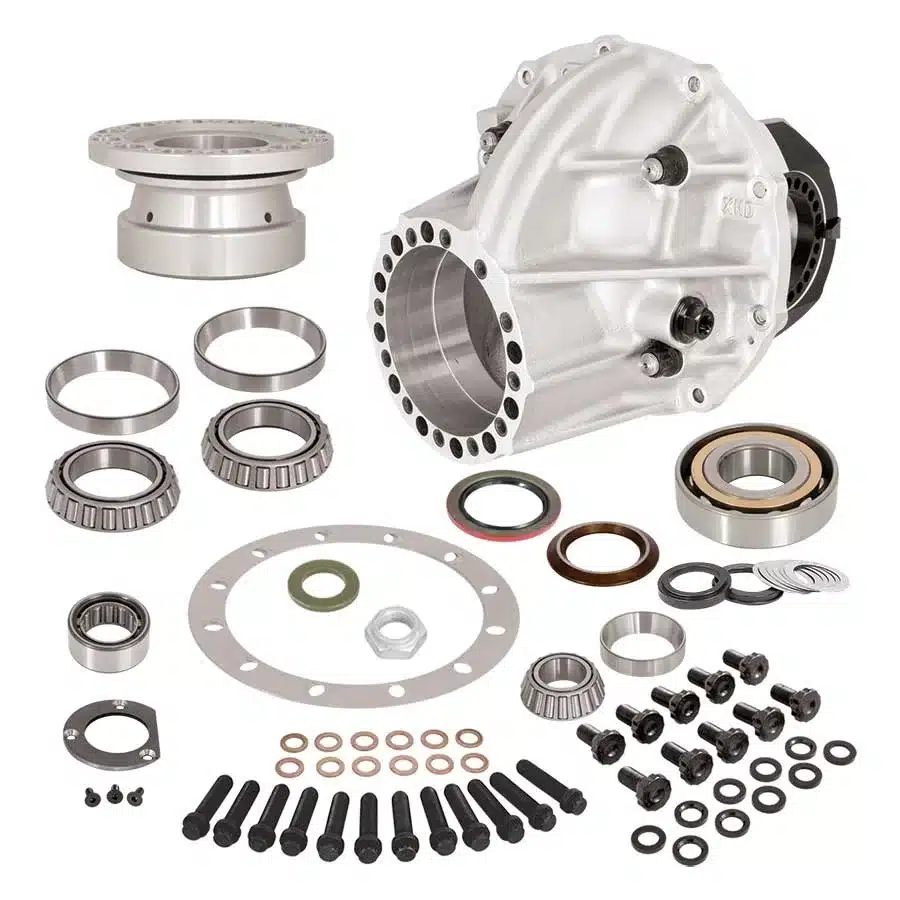

Package Includes
N1912PS
• Lightened Ultra Case 3.812″ bore
• 206-T4 aluminum
• Extra large oil channel
• Critical areas heavily reinforced
• Lightened billet aluminum main caps
• Solid steel adjuster nuts
• Designed & machined by Strange
• Cast in the USA

N1952A
• 6061-T6511 billet aluminum taper / ball support
• Lightened
• Clear anodized finish

Remaining Components
• Timken® front pinion bearing & race
• Angular contact low friction rear pinion bearing
• Two piece adjustable preload spacer
• Rear bearing spacer
• Pinion depth shim kit
• Support bolts, washers, and o-ring
• Low friction pinion seal
• Pinion washer & locking nut
• Oversize tail bearing with retainer plate and screws
• Timken® side bearings and races
• ARP 1/2″ ring gear bolts
