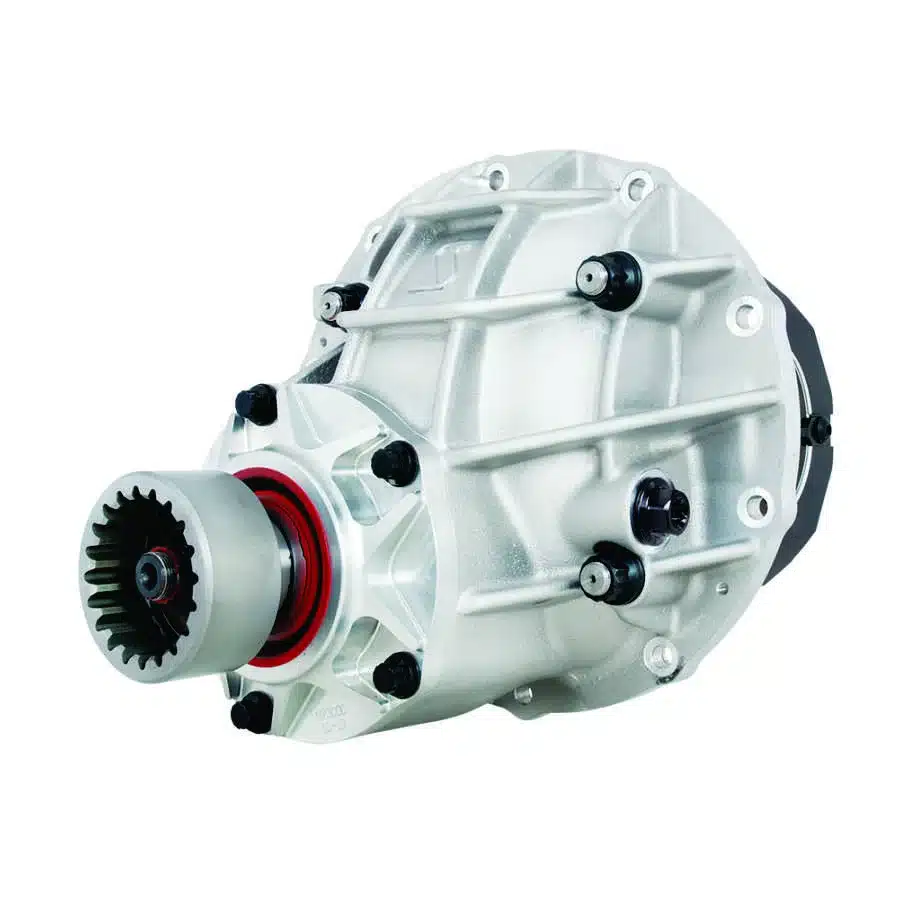

Strange HD Pro 9″ Ford Center Section Lightweight Steel Spool Standard Gear & Female Coupler
Price range: $3,014.00 through $3,154.00 CAD
Designed Specifically For Drag Racing
This Center Section May Not Fit Your Housing

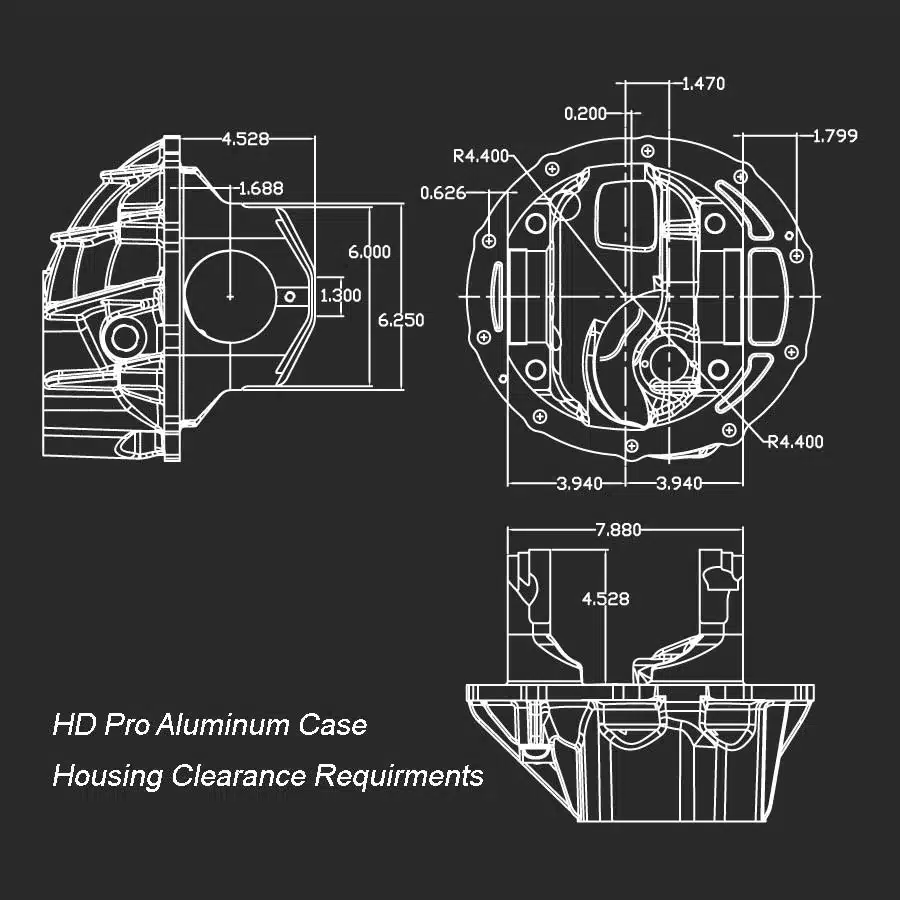

Refer to the clearance diagrams shown on this page
See Description Tab below for additional Specifications.
Description
Includes
• Professional assembly
• Grade 8 ring gear bolts
• Shipped in protective container
HD Pro Case
• Heat treated 206-T4 aluminum
• Billet aluminum main caps
• Solid Steel Adjuster Nuts
• Designed & machined by Strange
• Cast in the USA
Tapered Bearing Support – N2322
• Billet aluminum
• Oversized bearings and races
• Pinion seal retainer ring
Lightweight Spool – D1553 / D1554 / D1555
• 31, 33 or 35 spline spool
• Forged steel
Choice of Standard GearFemale Coupler – U3627
Additional information
| Ratio | 3:25, 3:50, 3:70, 3:89, 4:11, 4:29, 4:57, 4:86, 5:00, Other |
|---|---|
| Spline | 31 Spline, 33 Spline, 35 Spline, 40 Spline ($140.00) |
