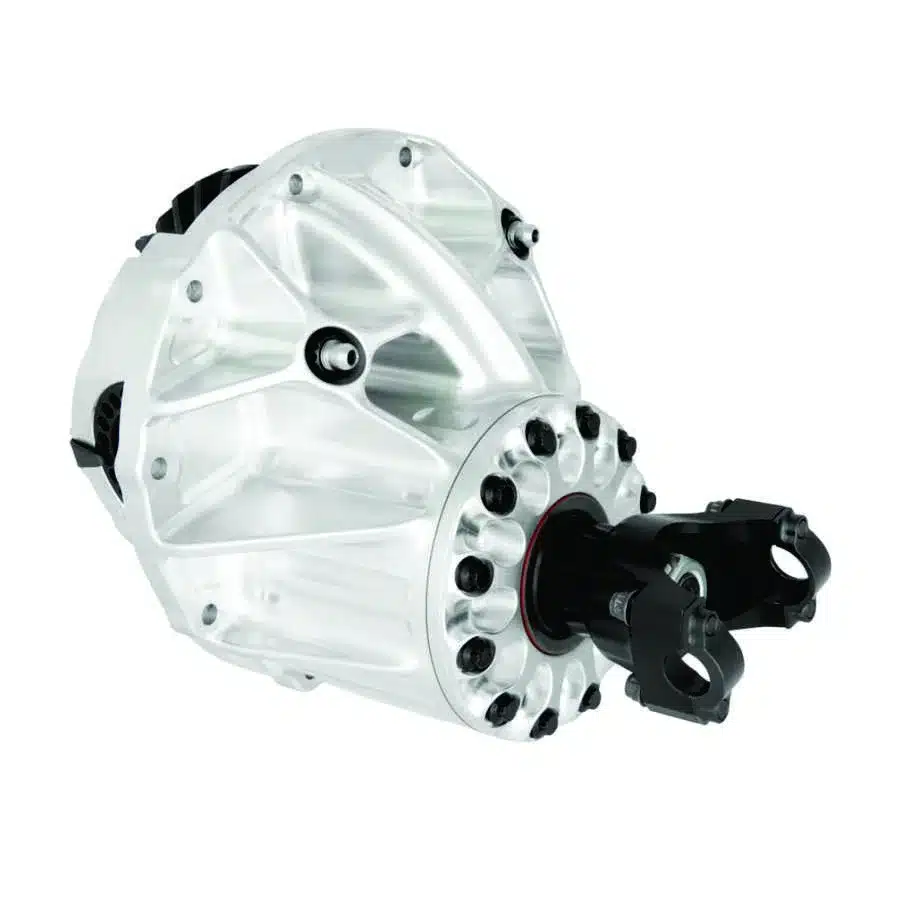

Strange Billet Aluminum 9" Ford HD 40 Spline Lightweight Steel Spool 35 Spline Pro Gear & Moly Yoke
Strange Billet Aluminum 9" Ford HD 40 Spline Lightweight Steel Spool 35 Spline Pro Gear & Moly Yoke - Image 2

Strange Billet Aluminum 9″ Ford HD 40 Spline Lightweight Steel Spool 35 Spline Pro Gear & Moly Yoke

SKU: BP-425 Category:

$6,899.95 CAD

Designed Specifically For Drag Racing
This Center Section & Gear Set May Not Fit Your Housing
Refer to the clearance diagrams shown on this page

See Description Tab below for additional Specifications.

MORE INFORMATION (PDF)

Description

Application
Pro Mod
Alcohol Funny Car
Top Dragster
Drag Radial
Outlaw 632
Radial vs The World
Radical high horsepower vehicles

9 1/2″ Gear Option
Check gear clearance diagram

Includes

Billet Case – N1912PM
• 7075-T73 Aerospace aluminum case
• Vibratory stressed relieved
• Solution heat treated
• Type II anodizing
• .650″ thick mounting flange
• Large oil scavenging channel
• Raised cross rib design
• Wrap around designed main caps
• AISI 8740 steel bullet end main studs
• Massive wall sections in tail bearing area
• Extensive lightening
• Designed & machined by Strange
• Material made in the USA

Tapered Bearing Support – N1950AB
• 2024-T351 billet aluminum support
• For tapered pinion bearings
• Designed for 9″ & 9 1/2″ gear sets
• Milled for maximum weight reduction
• Clear anodized

Sensor Bracket
• Billet aluminum
• One bracket is included
• Additional bracket available as an option

HD 40 Spline Lightweight Spool – D2002
• 2.250″ bearing journal for additional load capacity
• Lightened to eliminate unnecessary weight
• Forged steel

Choice of 9″ Pro Gear

Chrome Moly Yoke & Cap Kit – U1604 / U1610HD
• For 1350 series u-joint

Additional information

Ratio

3:25, 3:50, 3:70, 3:89, 4:11, 4:29, 4:57, 4:86, 5:00, 5:14, Other
