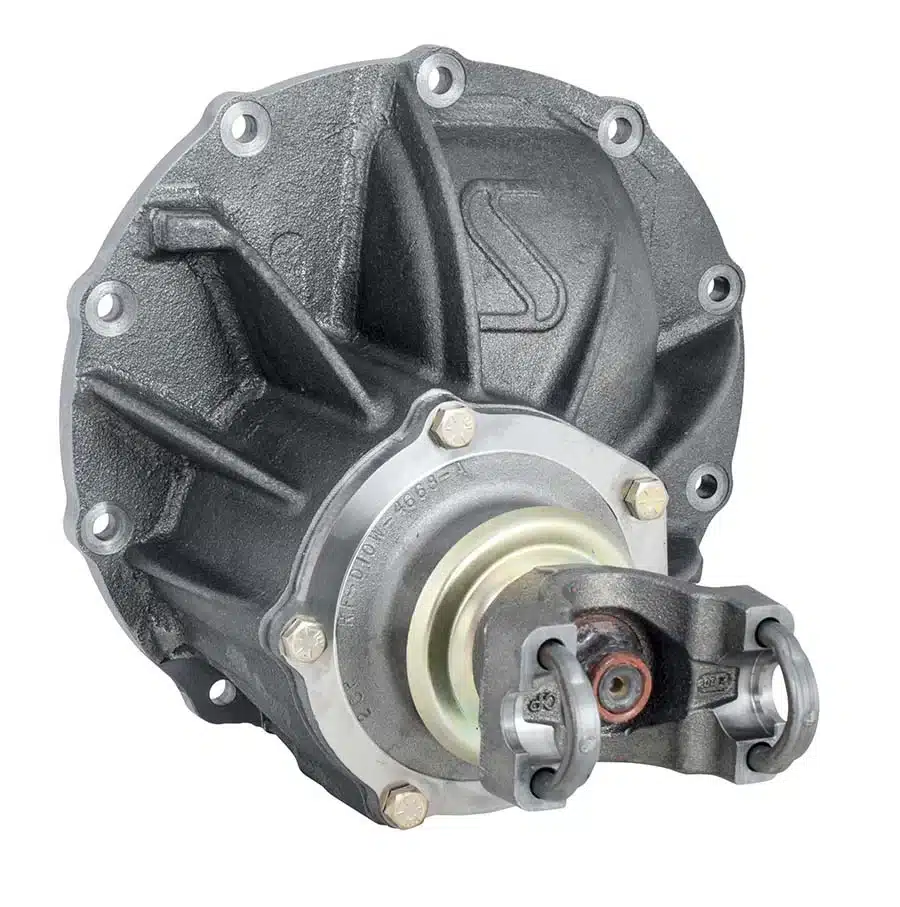

S-Series Iron 9" Ford Center Section With Spool, Standard Gear & 1350 Series Yoke

S-Series Iron 9″ Ford Center Section With Spool, Standard Gear & 1350 Series Yoke

SKU: BP-135 Category:

$1,989.00 CAD

Application
Heavier Mid-Range Horsepower Drag Race Cars
Limited by strength of standard gear set

See Description Tab below for additional Specifications.

MORE INFORMATION (PDF)

Description

Includes
• Professional assembly
• Grade 8 ring gear bolts
• Shipped in protective container

S-Series Nodular Iron Case – N2205 / N2206
• Radial rib design increases stiffness
• 8-10% stronger material than factory nodular iron
• Additional mass in all critical areas
• Heavy duty nodular main caps
• Solid adjuster nuts
• Designed & machined by Strange
• Cast in the USA

Daytona Pinion Support – N1914
• Nodular iron
• Stronger than plain cast iron
• Larger bearings than OEM stock support

Lightweight Spool – D1515 / D1516 / D1554 / D1518
• 28, 31, 33, or 35 spline
• Forged steel

Choice of Standard GearS-Series Yoke with U-Bolts – U2203 / U1610
• For 1350 series u-joint

Additional information

Ratio

3:25, 3:50, 3:70, 3:89, 4:11, 4:29, 4:57, 4:86, 5:00, 5:14, Other
Spline

28 Spline, 31 Spline, 33 Spline, 35 Spline
