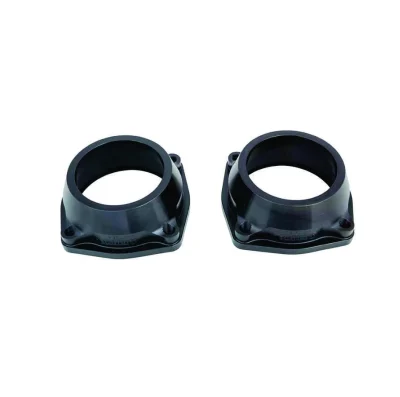

Chev. Conversion Housing Ends – 3.150″ Bearing
$228.80 CAD
Special Small GM Housing Ends
• 1968-1980 Chevy passenger car bolt pattern
• Also 1998-2002 GM F-Body
• Accepts 3.150″ O.D. axle bearings
Sold as Pair ( Strange Part # H1143)
See Description Tab below for additional Specifications.
Description
Drum Brake Applications
Backing plate hole needs to be machined to 3.155″
Features
• 8620 forged chrome moly steel
• Butt weld design
• For 3″ or 3 1/4″ OD tubing
• Black oxide finish
• Designed & machined by Strange
• Forged in the USA

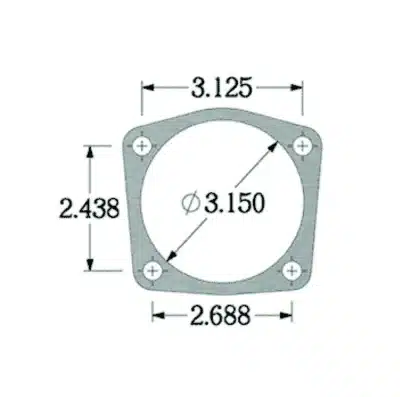

Dimensions
• 1.300″ total width
• 0.281″ wide flange
• 3.152″ ID x .680″ deep bearing bore
• 3.250″ OD / 2.500″ ID at tube end
Typical Brake Offset (F)
1968-1980 drum – 2.832″
1998-2002 F-Body disc – 2.740″
