Bear’s Pro HD 4-Link Kit

This kit works well for the extreme power and torque delivered by Higher HP cars. All brackets are laser cut and CNC machined from 1/4″ 4130 plate to make them the TRUEST bracket on the market. The housing brackets have 6 lower adjustment holes and have adjustable shock mount holes (3/8″ or 1/2″). NOTE : fixed shock mount bracket shown is NLA.

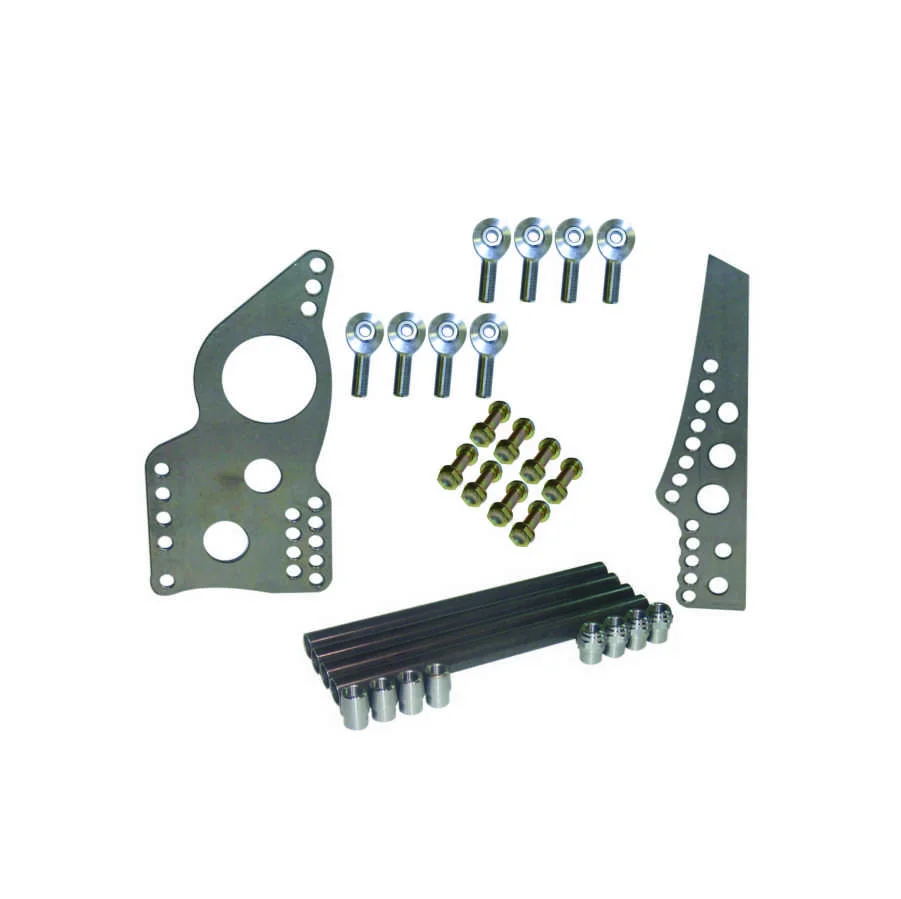

Kit Includes :

• Bear’s 1/4″ 4130 chassis and housing brackets (3 1/4″ or 3 1/2″ tubes)
• 1 3/8″ x .095″ 4-link tubes (optional 1 1/4″ x .120″ tubes)
• 4130 tube adapters
• AM grade rod ends w/ jam nuts
• N.A.S. 1/2″ hardware

Add a set of Doubler Plates for added strength, available in 1/8″ or 1/4″ 4130. (must be reamed to size after installation).
