2-Piston Calipers w/ Pads

Description

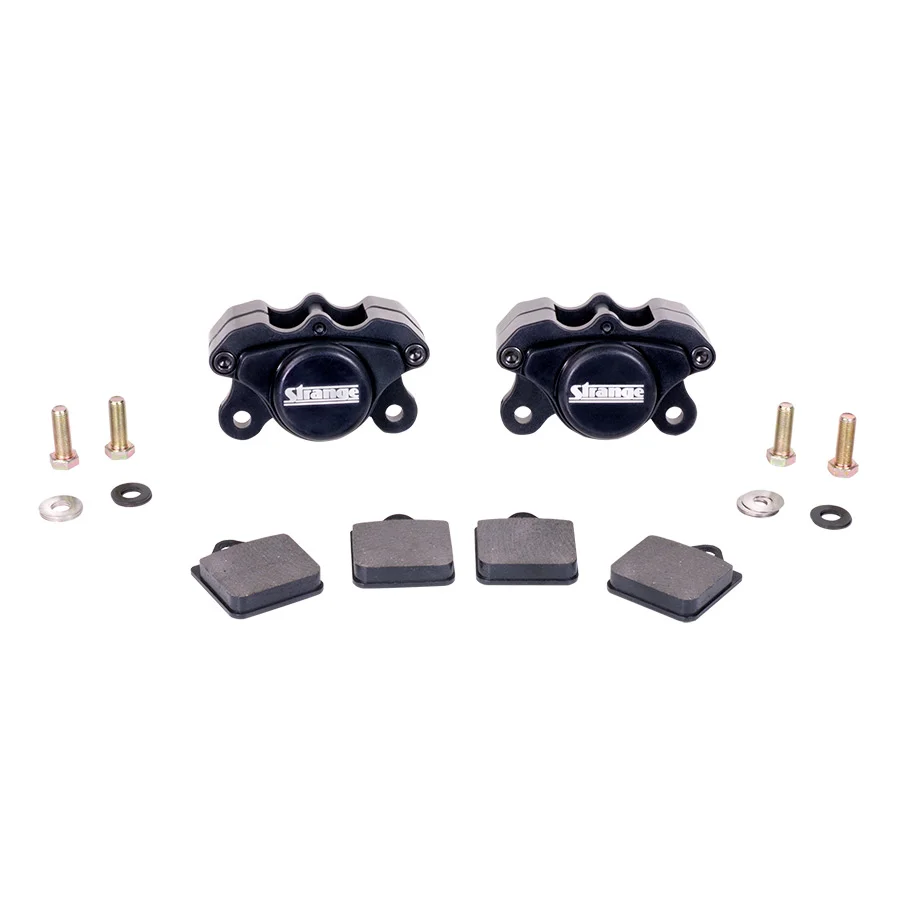

Kit Includes

Two Piston Billet Caliper – B2560
– Billet aluminum body is extremely ridged reducing spread and flex
– 1 3/4″ stainless steel pistons resist corrosion

Bolt Kit
– Four 3/8″-24 x 1.125″ grade 8 bolts
– Four 3/8″ ID .125″ thick washers
– Sixteen 3/8″ ID .025″ thick stainless steel alignment shims

Soft Metallic Brake Pads – B2510
– Provides the best starting-line cold holding power
– Only material suitable for use in front steel applications

Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
Use Teflon® tape or liquid on the pipe threads of the fitting.
Leave a few threads from the tip uncoated to avoid depositing material inside.
Torque to 25 ft lbs.
