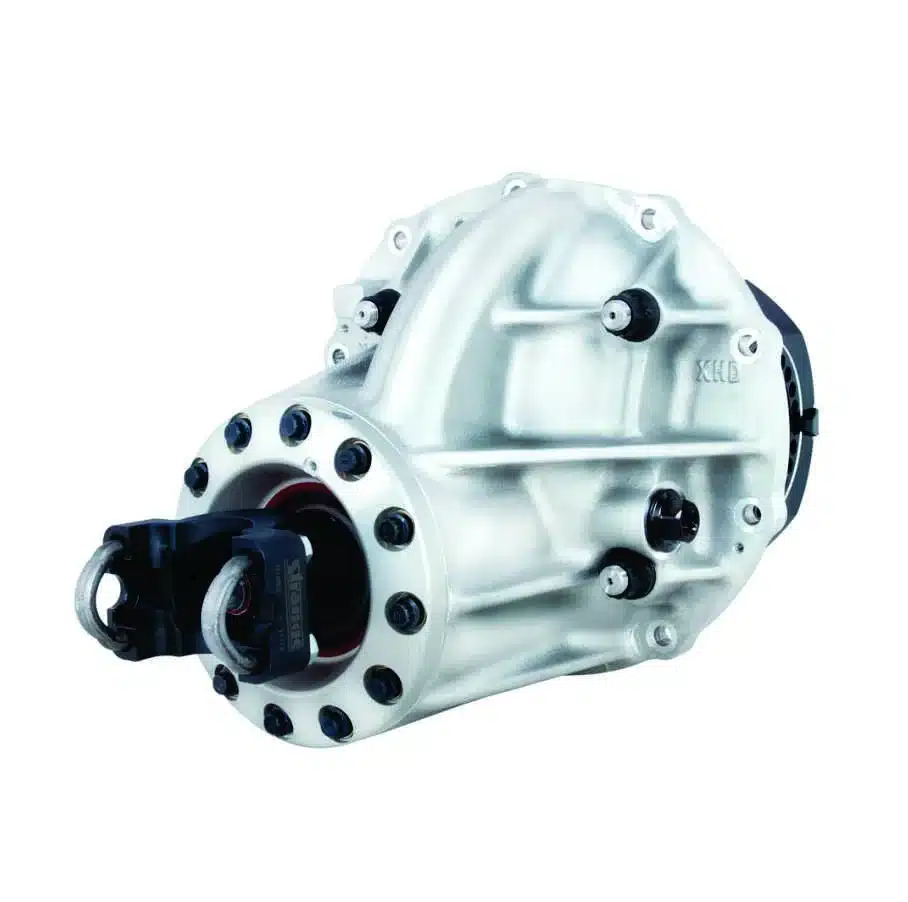

Strange Ultra Case 9" Ford HD 40 Spline Lightweight Steel Spool 35 Spline Pro Gear & Moly Yoke
Strange Ultra Case 9" Ford HD 40 Spline Lightweight Steel Spool 35 Spline Pro Gear & Moly Yoke - Image 2

Strange Ultra Case 9″ Ford HD 40 Spline Lightweight Steel Spool 35 Spline Pro Gear & Moly Yoke

SKU: BP-225 Category:

$3,814.00 CAD

Designed Specifically For Drag Racing
This Center Section May Not Fit Your Housing

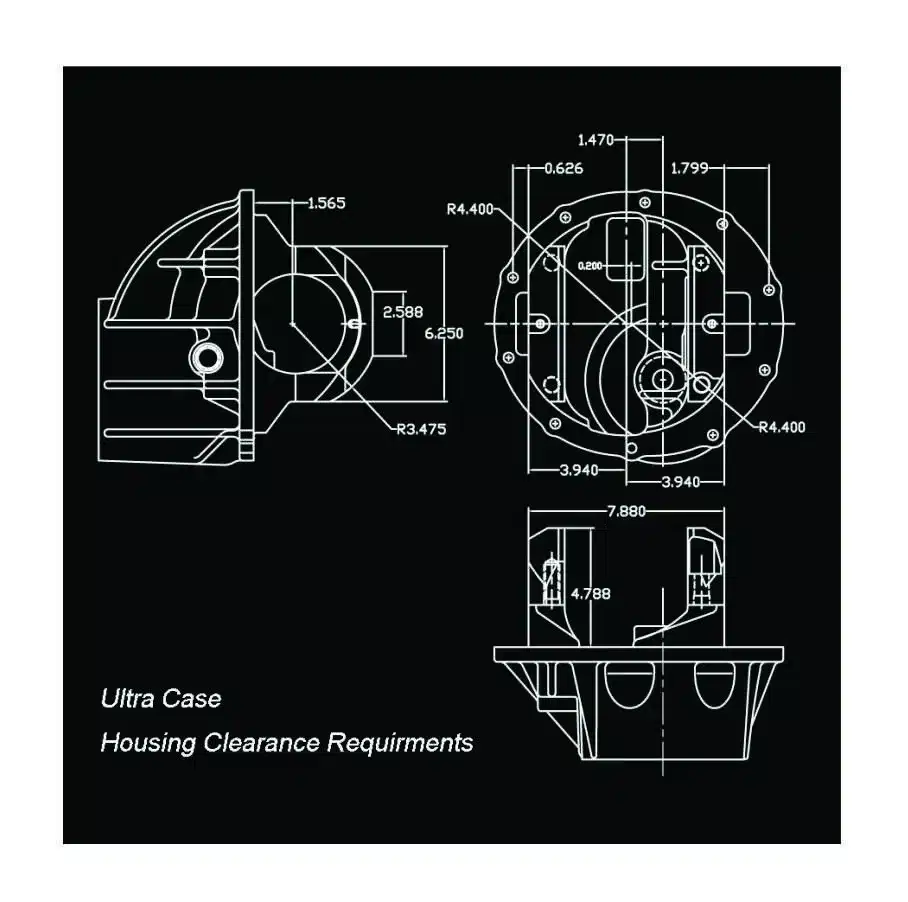

Refer to the clearance diagrams shown on this page

See Description Tab below for additional Specifications.

MORE INFORMATION (PDF)

Description

Application
Pro Mod
Top Dragster
Drag Radial
Outlaw 632
Radial vs The World
Radical high horsepower vehicles

9 1/2″ Gear Option
Check Gear Clearance Diagram

Includes
• Professional assembly
• ARP ring gear bolts
• Shipped in protective container

Ultra Case – N1912
• 3.812″ bore
• 206-T4 aluminum
• Extra large oil channel
• Critical areas heavily reinforced
• Billet aluminum main caps
• Solid steel adjuster nuts
• Designed & machined by Strange
• Cast in the USA

Tapered Bearing Support –N1950A
• Billet 6061-T6511 aluminum
• Drilled & tapped for 5/16″ & 3/8″ pick-up sensors
• For 9″ & 9 1/2″ gear sets
• Clear anodized finish

3/8″ Sensor Holes Were Added to Supports in 2021

HD 40 Spline Lightweight Spool – D2002
• 2.250″ bearing journal for additional load capacity
• Lightened to eliminate unnecessary weight
• Forged steel

Choice of 9″ 35 Spline Pro Gear

Chrome Moly Yoke & U-Bolts – U1604 / U1610
• For 1350 series u-joint

Additional information

Ratio

3:25, 3:50, 3:70, 3:89, 4:11, 4:29, 4:57, 4:86, 5:00, 5:14, Other
