Strange HD 9″ Ford Housing Bolt-in For 1979-2004 Mustang Complete With Mounts & Ends

Description

Information Required
Type of housing ends
Housing width

Pinion Offset – .625″ To The Passenger Side
Same as OEM 8.8 housing

Center Housing – H1112 *
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
• Extended cover provides clearance for 9″ & 9 1/2″ gear sets

* Modified for this application

Fill & Drain plugs
• Facilitate fluid changes
• Allows for inspection of ring gear

Housing Tubing
• DOM 1026 steel
• 3.250″ OD x .250″ wall thickness

Vent
• Prevents build-up of internal pressure
• Ensures sealing integrity

1979-2004 Mustang Mounts
• Strange HD upper control arm mounts
• Lower control arm mounts with multiple hole locations

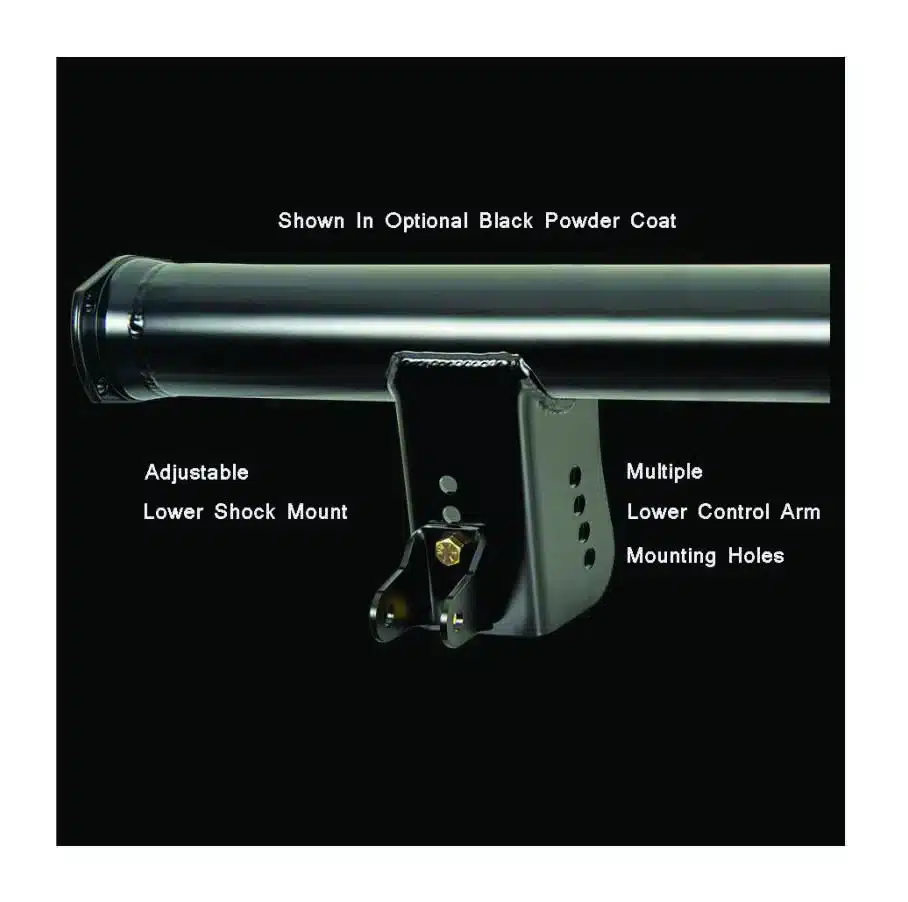

Adjustable Shock Mounts
• 6 positions with .375″ increments
• 1.875″ of adjustment
• Allows ride height adjustments without affecting stroke

Choice of Housing Ends
• Forged chrome moly
• Accept 3.150″ bearings
• Other Strange ends are available

Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity

Options
Powder coat housing
Install back brace

Complete your housing with axles and 3rd member. Our Sales team will contact you to complete your package. May be subject to additional freight charges from Strange.
