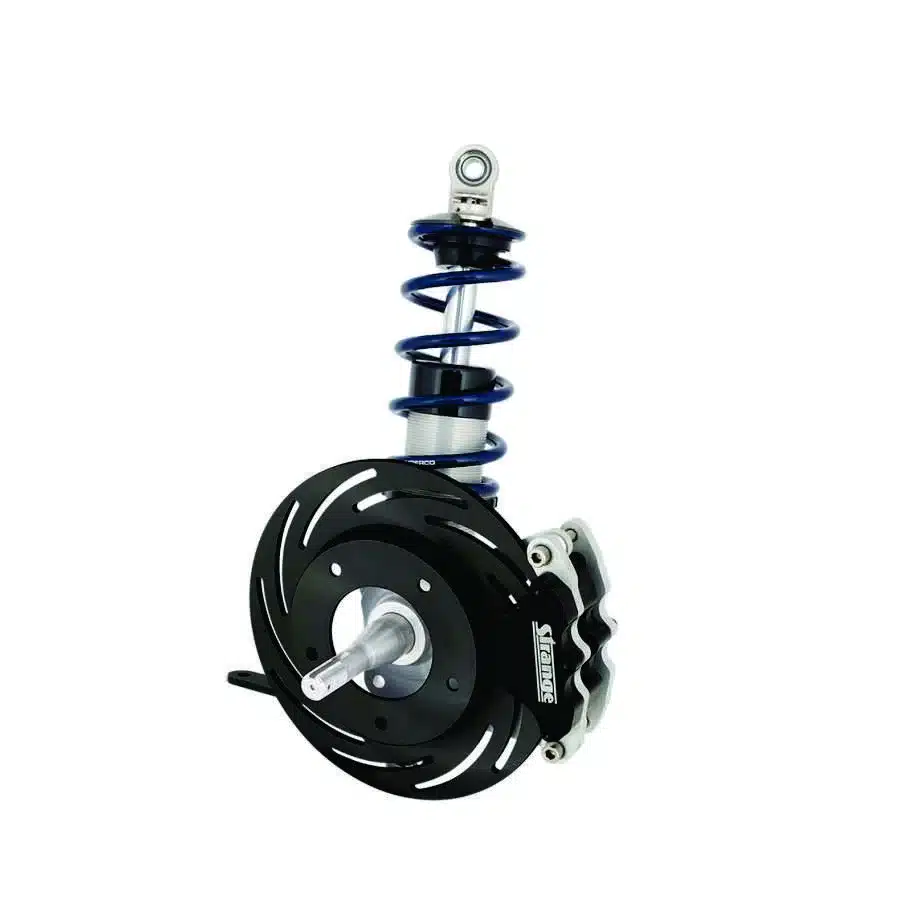

Strange Eye Mount Aluminum Strut Package With L/W Brake Kit For Spindle Mount Wheels

Description

Strut Package Includes:
Eye Mount Struts
• Forged 2014-T4 aluminum bodies
• Stainless steel spindles
• 2 1/2″ stroke (with bumper installed)
• Externally adjustable for extension rate
• Valved specifically for Drag Racing
• Custom valving available on request
• Forged in the USA
• Designed, machined, & assembled by Strange Engineering

Lightweight Fabricated Lower Control Arms – S3420-WAK / S3421-WAK
• Constructed from 4130 chromoly components and tubing
• Modifications to tube length and welding of tube adapters is required
• Chromoly tube adapters supplied loose
• Choice of 7/16″ or 1/2″ Teflon® lined chrome moly rod ends
• Teflon® lined spherical ball LCA bearings
• Grade 8 bolts, flanged locking Jet nuts, & 3AN washers

Hyperco Springs (Blue) or Eibach Springs (Red or Silver)
• Chrome silicon steel
• Powder coated for corrosion resistance
• Choice of spring rate

Spring Manufacturer Dependent on Availability
If manufacturer or color is important, please specify
Not all rates are available in all three colors

Spring Seat Bearing Kit – S1409
• Allows smooth height adjustment
• Eliminates spring bind during turns

Spindle Mount Brake Kit – B4597WC / B4598WC
• One piece forged slotted steel rotors
• Choice of 1″ or 1 1/2″ offset rotors
• Single 1 3/4″ piston billet aluminum calipers
• Slider assemblies featuring Garlock bearings
• Soft metallic brake pads
• Billet aluminum caliper mounts

Note
Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings

Recommended Spring Rates
Front Weight – Spring Rate
1,100 lbs – 200 lbs
1,200 lbs – 200 to 225 lbs
1,300 lbs – 225 to 250 lbs
1,400 lbs – 250 to 275 lbs
1,500 lbs – 275 to 300 lbs
1,600 lbs – 300 to 325 lbs

Consult your chassis builder for their suggestion
