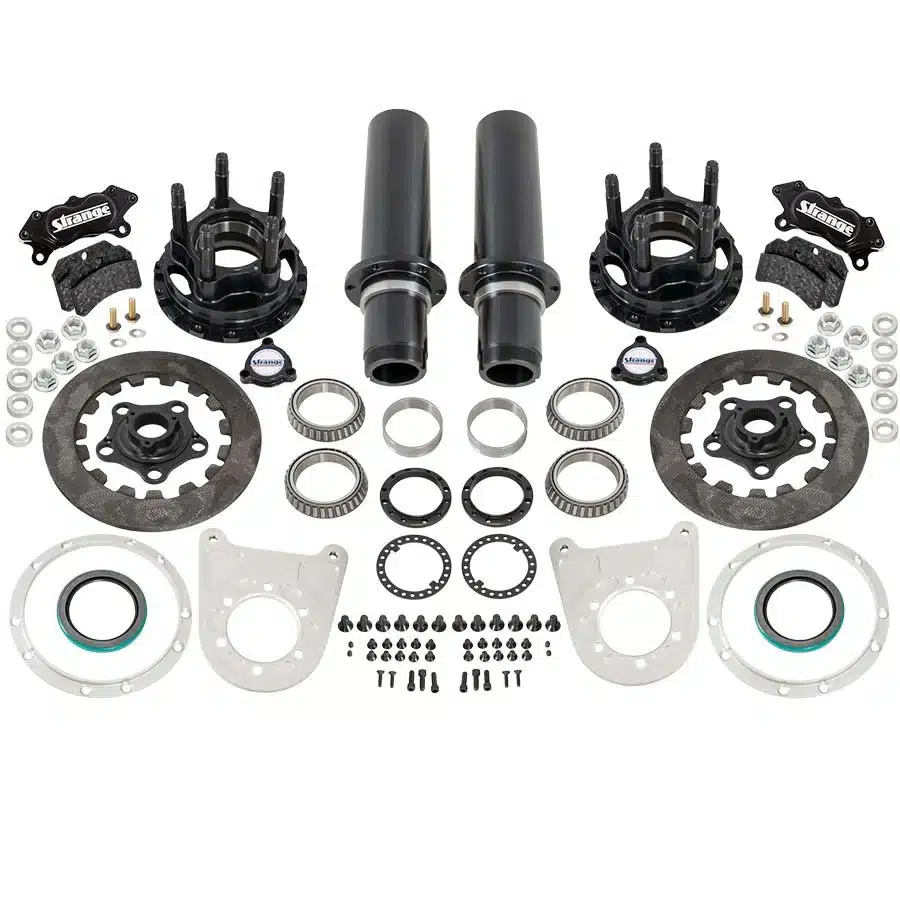

Drag Race 40 Spline Floater Kit With Carbon Brake Kit

Description

Safety
Housing supports weight, bending loads, and tire shake
Axle shafts only requirement is to transfer torque
Prevents the possibility of axle flange breakage

Floater Spindles
• 4130 chrome moly
• Machined with large inner bearing radius
• Vastly increases bending load strength
• Provides rigid support for hubs & bearings
• Designed for 3 1/4″ or 3 1/2″ O.D. housing tubing
• 3.00″ O.D. tube end ** Requires finish turning to suit axle tube I.D.

Spindle Radii Rings
• Mates with large spindle radius
• Creates positive inner bearing seat
• Machined from stainless steel
• Provides corrosion resistant sealing surface

Aluminum Hub / Rotor Adapters
• 2024-T351 billet aluminum
• Machined for 5 1/2″ bolt circle
• Integral cogged rotor mount
• Lug design allows rotors to float
• Allows for thermal expansion
• Black anodized finish

Press-in Wheel Studs
• 8740 chrome moly
• Anti-rotational designed head
• .6865″ shank / 5/8″-18 threads
• Two lengths available ** Please supply wheel thickness

Choice of Lug Nuts
• Steel with aluminum anti-marring washers
• Aluminum with encapsulated washer

Steel Drive Plates
• 8620 hardened steel
• Scalloped design removes unnecessary weight
• Designed for 40 spline shaft with 45° pressure angle *
• Black oxide finish * Inner axle splines can be made to suit other spools

Timken® Tapered Bearings & Races
• Premium components from a trusted name
• Ensures proper fit & long bearing life

Solid Preload Spacer
• Prevents excessive preload
• Maintains consistency

Spindle Nut Retention System
• Heat treated spindle nut tapped for set screws
• Twin tab nut retainer securely engages spindle
• Dog point set screws prevent nut rotation
• Ensures proper bearing preload is maintained

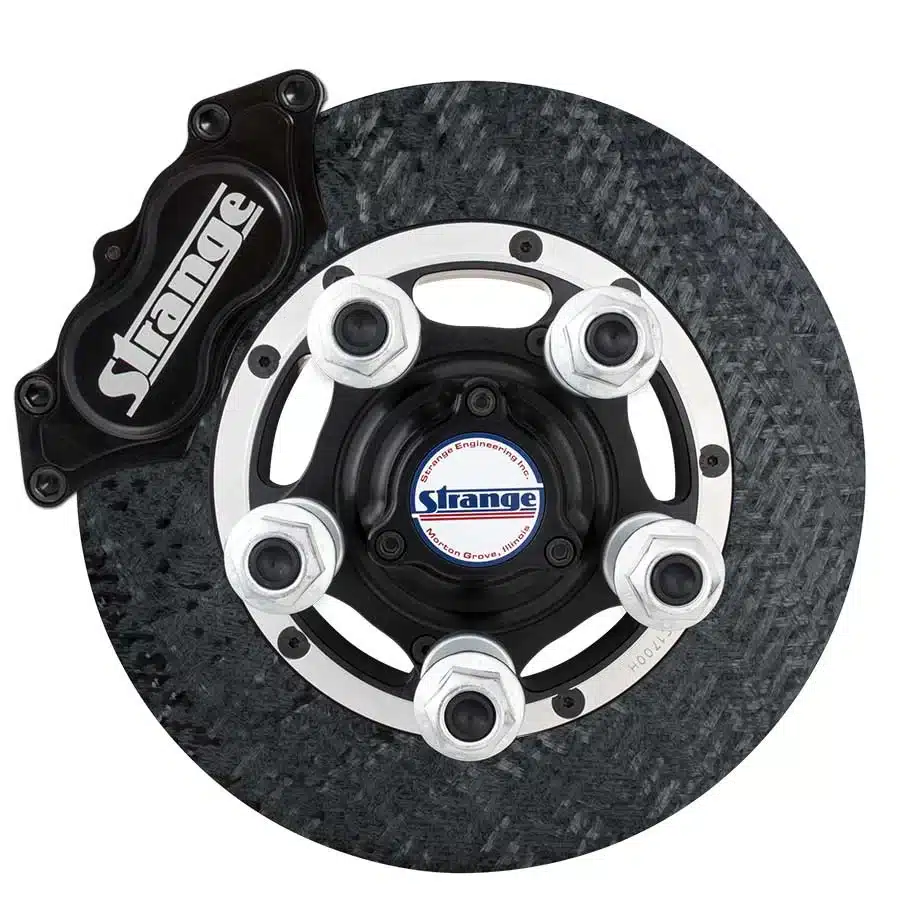

Pro Carbon Brake Kit – C2000WC
• 11″ carbon rotors
• Billet aluminum four piston calipers
• Carbon brake pads
• Aluminum mounting plates

Mounting Hardware
• All premium grade
• Provides safety and security

Axles Below Sold Separately
