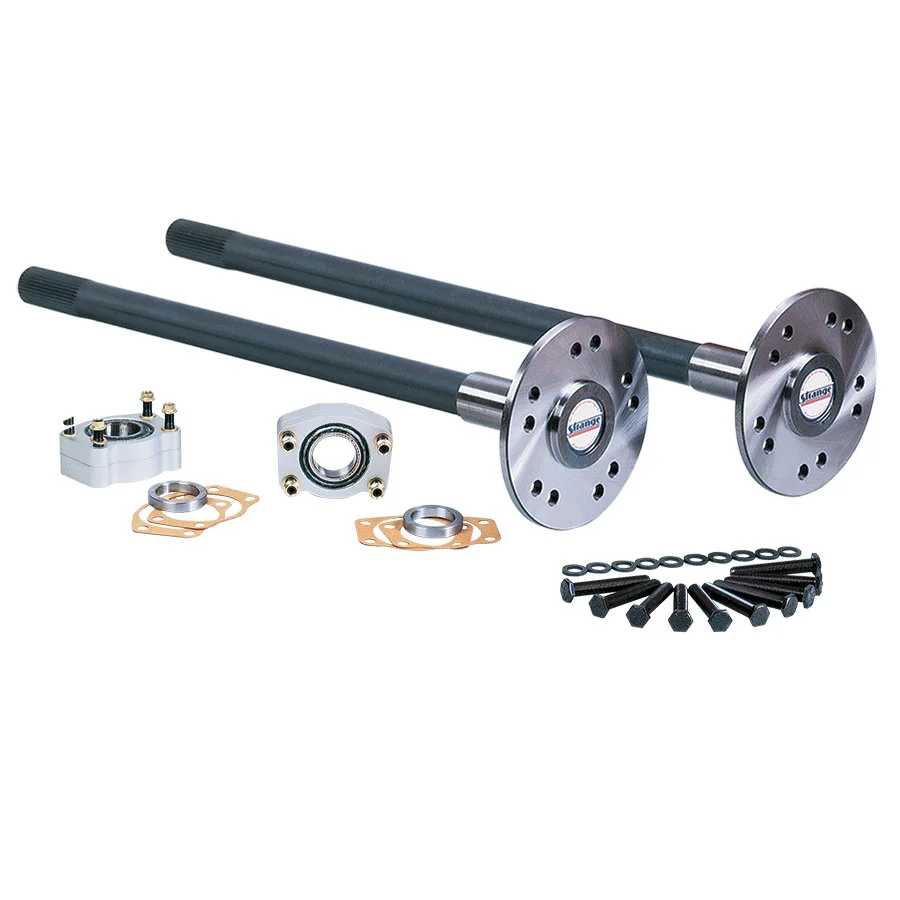

86-93 Ford 8.8 Pro race Axles / C-Clip kit

86-93 Ford 8.8 Pro race Axles / C-Clip kit

SKU: P-1011F86 Category:

$974.95 CAD

Designed Specifically For Drag Racing
Thru-hardening maximizes the torsional strength of Hy-Tuf axles
This also reduces the flexibility necessary for street driving
Packages For Street & Track – P3109F86 / P3509F86

Application
1986-1993 Mustang
With OEM housing ends & factory drum brakes
** Aftermarket disc brakes if designed for this Strange Eliminator Kit

Aftermarket Differentials & Spools
33 spline will vary on spline design
Specify manufacturer to ensure proper fit
35 spline requires 30° pressure angle
Will not fit Mark Williams spools

See Description Tab below for additional Specifications

Description

Includes:
Hy-Tuf Ultra Strength Axles – A1000
• Forged from high nickel, molybdenum and chromium steel
• Increases torsional strength and material toughness
• Manganese added to improve hardness consistency
• Majority of machining performed before heat treat
• Thru hardened to Rc 45-48
• Finish machined after heat treat to ensure trueness
• Choice of 31, 33, or 35 spline
• Custom lengths available at no additional charge
• Choice of bolt circle
• Forged in the USA
• Designed and machined by Strange Engineering

C-Clip Eliminator Kit – A1090
• Billet aluminum inner and outer halves
• Tapered bearings ensure long bearing life
• Locking rings
• Outer seals
• Gaskets
• Grade 8 studs with locking nuts & washers

Choice of Screw-in Wheel Studs
• 1/2″-20 studs 2″ long * – A1025
• 1/2″-20 studs 3″ long * – A1026* Length measured from underneath the hex of the stud

Additional information

SPLINE

31 Spline, 33 SPline, 35 Spline
