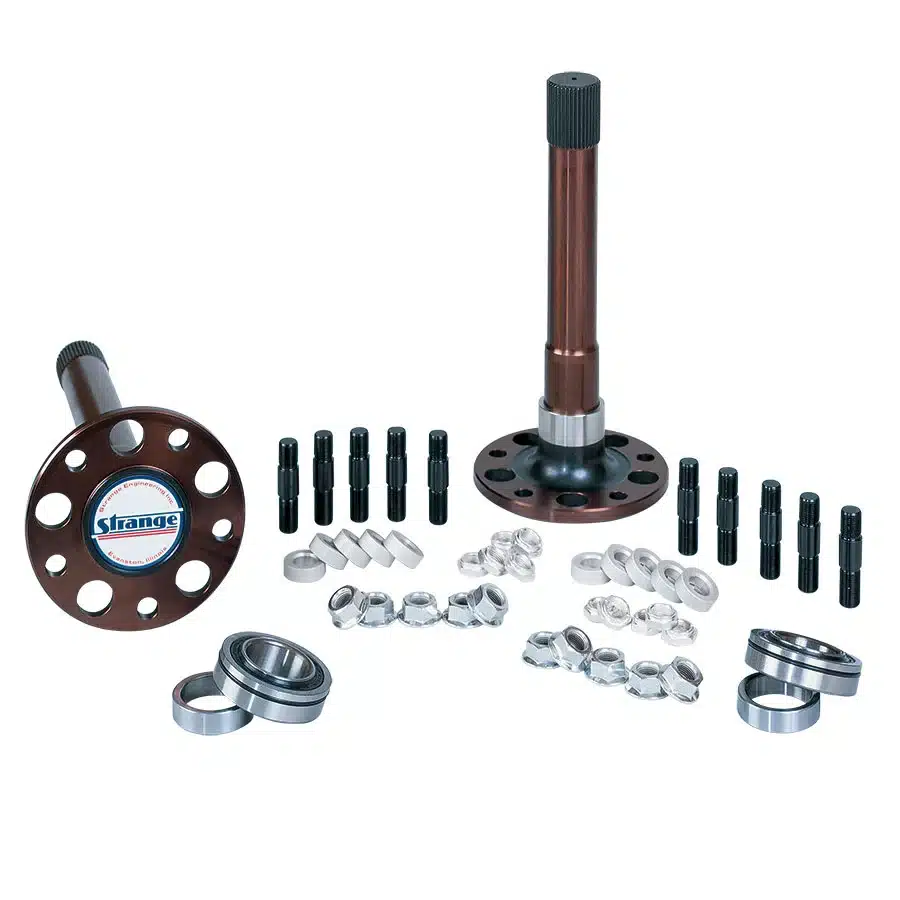

40 Spline Solid Axle Package

Description

Includes:
Hy-Tuf Ultra Strength Axles – A2100
• Forged from high nickel, molybdenum and chromium steel
• Increases torsional strength and material toughness
• Manganese added to improve hardness consistency
• Majority of machining performed before heat treat
• Five 1″ lightening holes
• Thru hardened to Rc 45-48
• Finish machined after heat treat
• Includes full length of shaft to ensure trueness
• Black oxide finish resists corrosion
• Choice of bolt circle
• Forged in the USA
• Designed and machined by Strange Engineering

Sealed Ball Bearings – A1019
• Low friction bearings designed specifically for Drag Racing
• Large I.D. to accept 40 spline axle
• Race O.D. grooved for O-ring to eliminate inner axle seal
• Includes O-rings and locking collars

Choice of 5/8″-18 Stud Kit

Bolt Style Stud Kit – A1027 / A1027S / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Part number suffix determines width of aluminum washers
• No suffix = .4375″ / S = .250″ / L = .688″
• Includes threaded sleeves, installation tool & flanged lug nuts
* Length measured from underneath the hex of the stud

Shank Style – A1036 / A1037 / A1037MD / A1038 / A1039 / A1041
• 5/8″-18 chrome moly stud available in six different shank lengths
• Part number suffix determines width of aluminum washers
• No suffix = .4375″ / S = .250″ / L = .688″
• Includes thin head self locking inner nuts & flanged lug nuts
