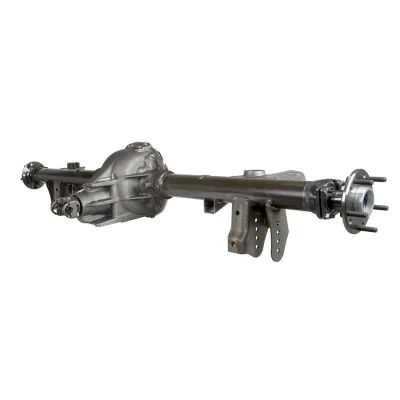

1993-2002 Camaro / Firebird Bolt-In Rear End Strange 12 Bolt With Eaton 33 Spline Truetrac & ABS
$4,854.85 CAD
Strange 12 Bolt Complete Rear End – Less Brakes
33 spline axles, Eaton Truetrac Differential & 1/2″ or 12mm studs
No additional charge for custom width
1993-2002 Camaro / Firebird / Trans Am
• Using factory brakes & ABS system
• Aftermarket torque arm may need to be modified
See Description Tab below for additional Specifications.
Description
Features
• OEM lower control locations with multiple height mounting holes
• Additional holes enhances chassis tuning abilities
• Factory .520″ pinion offset to passenger side
Don’t Use Friction Modifier or Synthetic Gear Oil
Petroleum Base Fluid Only
1993-1997
Will accept factory brakes
Requires optional billet caliper mounts
1998-2002
Reuses customer’s caliper mounts & backing plates
Components need to be sent-in for assembly
3 Channel ABS
Reluctor ring mounted on differential
Strange ABS sensor included
4 Channel ABS
Reluctor rings mounted on axles
OEM rings need to be sent-in for assembly
New rings are available separately
Information Needed
Year of vehicle
Factory or custom width
3 or 4 channel ABS
Gear Ratio
Stud choice
U-joint
Includes
• 12 bolt F-Body housing – H12FME
• Alloy 33 spline axle package
• 4 3/4″ bolt circle
• 1/2″ or 12mm stud kit – A1025 / A1026 / A1035
• Eaton 33 spline Truetrac – R5091T
• Choice of 3 series gear ratio
• S-Series pinion yoke with U-bolts – U1602 / U1610
• Conversion U-Joint – U1645
• Chrome steel cover – R5199
• Professionally welded and assembled
• Crated to protect your investment
This ships via truck from Strange and is subject to added freight cost. Please contact our sales office to place order.
