05-14 Mustang Drag Race Axle & Spool Pkg 35 Spl Axles, Eliminator Kit, 1/2″ Studs & Spool

Description

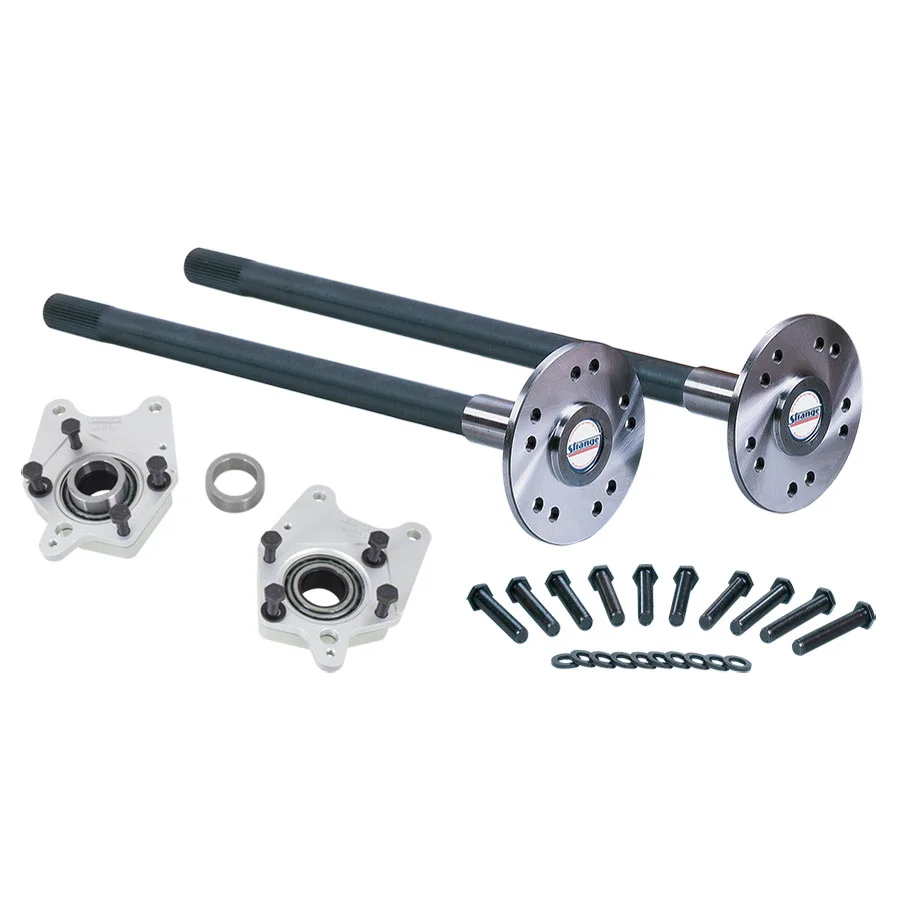

Includes:
Hy-Tuf Ultra Strength Axles – A1000
• Forged from high nickel, molybdenum and chromium steel
• Increases torsional strength and material toughness
• Manganese added to improve hardness consistency
• Majority of machining performed before heat treat
• Thru hardened to Rc 45-48
• Finish machined after heat treat to ensure trueness
• Choice of bolt circle
• Forged in the USA
• Designed and machined by Strange Engineering

C-Clip Eliminator Kit – A1099
• Billet aluminum caliper mounts to accept GT brakes
• Aluminum inner halves
• Tapered Unit bearings for long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers
Reuses OEM caliper mounting bolts

Choice of Screw-in Wheel Studs
• 1/2″-20 studs 2″ long * – A1025
• 1/2″-20 studs 3″ long * – A1026* Length measured from underneath the hex of the stud

Lightweight Steel Spool – D1567
• Forged from premium 4140 steel
• Lightened to maximize strength to weight
• Forged in the USA
• Designed and machined by Strange Engineering

ABS
This kit will work with factory reluctor rings
Read instructions carefully beforehand as assembly order is crucial
